Rib Lath Mesh/Expanded Ribbed Lath for Wall Plastering

Rib Lath Mesh/Expanded Ribbed Lath for Wall Plastering

Product Introduction:

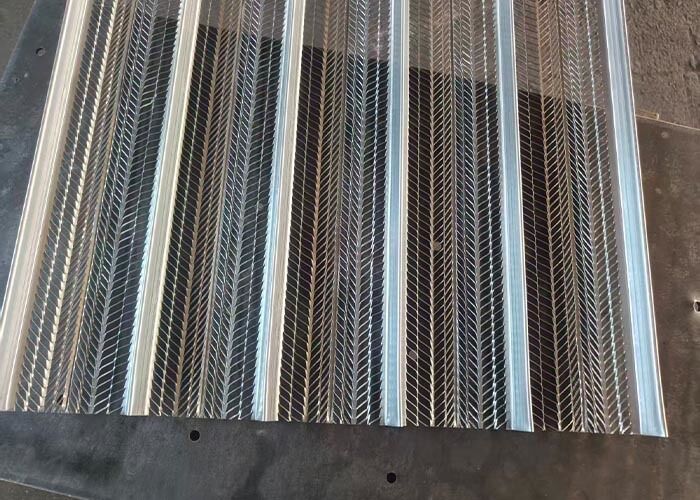

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties. It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.

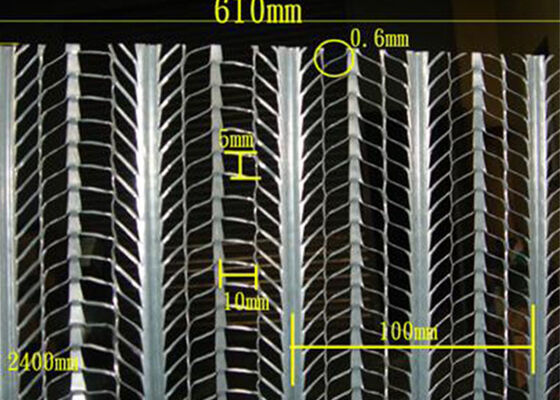

Rib Lath Mesh
	Material	Mild Steel
	Width	200mm, 300mm, 400mm, 500mm,600mm,700mm or as demand
	Length	2000mm,3000mm or as demand
	Thickness	0.25mm,0.30mm,0.40mm,0.45mm,0.50mm
	Rib Distance	10mm,15mm or as demand
	Packing	250pcs/pallet or as demand

Hy Rib Mesh
	Size	2000x445mm;3000x445mm
	Thickness	0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm
	Color	Silver
	Surface Treatment	Hot Dip Galvanized
	Packing	250pcs/pallet or as demand
	Other Size Acceptable

Benefits

• It offers great stiffness, high tensile strength and is not easy to break.

• It provides ample keying for plastering.

• Flexible structure can be bent and shaped at will.

• Easy construction, it allow you save your time greatly while offering an even plastering surface.

• Lightweight, easy to cut, bind and nail onto the keel light steel frame for easy and fast construction.

Hy Rib Mesh for Concrete Permanent Formwork & construction joints

Hy rib mesh, also known as fast-ez high ribbed formwork, is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.It is a jointless steel mesh stiffened by integral ribs. The continuous parallel V ribs are the main source of the hy rib mesh. Meanwhile, the steel mesh can be curved along the direction of V ribs. The profile of the steel mesh, in combination with the hy-rib tangs, allow the hy rib mesh can be widely used as the carrier of plaster, stucco and fireproofing material and served as a permanent formwork for concrete.
